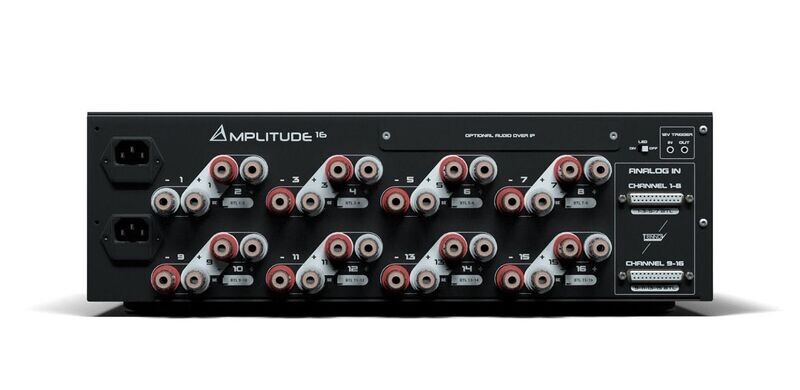

Trinnov Amplitude 16
The Amplitude16 is the most versatile power amplifier ever designed to address the varying needs of your immersive home theater.
Designed for immersive home theaters, with custom integration in mind, the Amplitude16 becomes perhaps the most versatile power amplifier available today, providing integrators with the unique ability to meet diverse channel counts and power requirements.
POWER HOUSE
Effectively two 8-channel amplifiers on a single 3RU chassis, the Amplitude16 has dual power supplies, each requiring its own 15A AC mains power inlet.
- Maximum continuous power with all 16 channels driven is 2800W at 115V and 3200W at 230V with less than 0.1% THD+N.
- Maximum peak power with all 16 channels driven is 6080W with 1% THD+N.
BRIDGE TO POWER
In its base model, it is a 16-channel power amplifier with a power rating of 200W/channel at 8 ohms and 400W/channel at 4 ohms.
Going beyond, the Amplitude16 provides the integrator with the option to bridge pairs of amplifier channels to increase available power for specific outputs.
This enables the integrator to maximize power for the channels with the greatest demand (left, center, and right screen channels).
In bridged mode, the power increases to 800W/channel at 8 ohms and over 1,000W/channel at 4 ohms.
Specifications:
https://www.trinnov.com/en/products/amplitude16/#Specifications
